1060 Aluminum strip for Transformer Winding
Improvements in technology regarding the use of Aluminium strip in transformers have made Aluminium-wound transformers the ideal choice for today’s applications.
1060 Aluminium strip for transformer with high precision is widely used in transformers.It has good forming property,high corrosion resistance,good weldability and conductivity.
Aluminium strip Feature
- Super thin,super extractive;
- Thin and light;
- High strength;
- High thermal conductivity and electric conductivity;
- Excellent silvery white luster,beautiful appearance.
Aluminium strip Dimensions
ALUMINIUM STRIP FOR TRANSFORMER |
|||||||
Alloy/Temper |
1050-O, 1060-O, 1070-O,1350-O |
||||||
Thickness |
0.2-0.4 |
0.4-0.8 |
0.9-1.1 |
1.2-1.6 |
1.8-2.5 |
||
tolerance |
±0.01 |
±0.015 |
±0.02 |
±0.025 |
±0.03 |
||
Width |
<100 |
100-200 |
201-500 |
501-1250 |
>1250 |
||
tolerance |
±0.1 |
±0.2 |
±0.2 |
±1 |
±2 |
||
BURR AND COLLAPSE |
|||||||
The width of aluminium strip |
Burr's height |
Collapsed side's height |
|||||
<0.2 |
0.01 |
≥0.05-0.1 |
|||||
0.2-1.0 |
0.015 |
||||||
1.1-1.5 |
0.02 |
||||||
>1.6 |
0.03 |
||||||
MECHANICAL PROPERTY |
|||||||
U.T.S: 60-95N/mm2 |
Elongation: >25% |
||||||
Density in 20℃ :2.703kg/dm3 |
Max.resistance in 20℃:≤0.02825Ωmm2/m |
Offer for thickness and width outside the range may be quoted on specific request
Specificity of 1060 aluminium strip for transformer with high precision supplied by manufacturer of aluminum strip for transformer winding

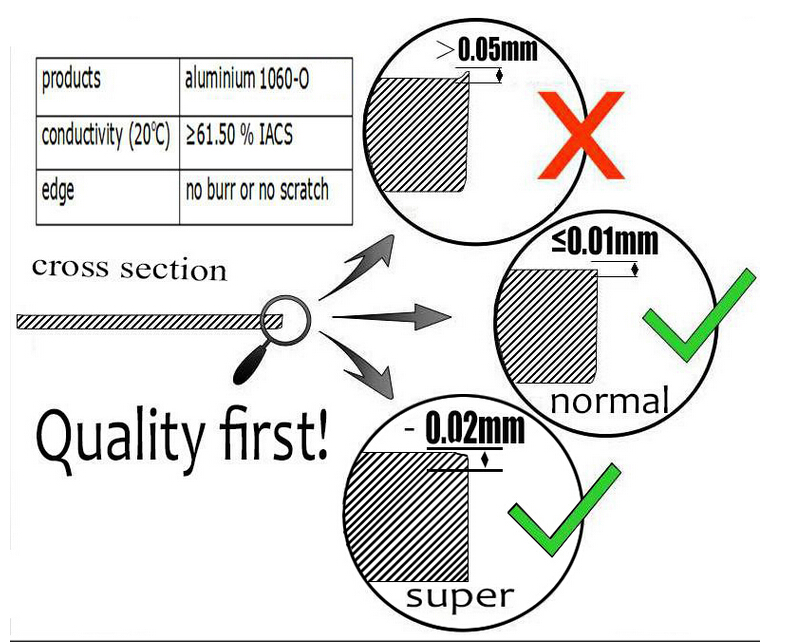

There is no burr on the edge of 1060 aluminum strip for transformer with high precision.Surface atomization treatment makes the surface of 1060 aluminum strip for transformer with high precision get to a brighter and cleaner level.

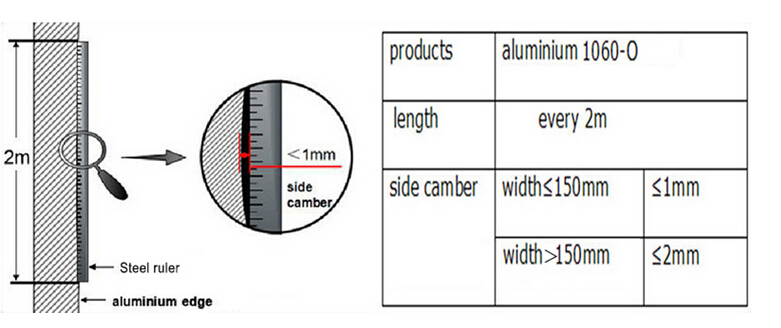

1060 aluminum strip for transformer with high precision has always been to maintain industry leading position with the domestic leading technology.Rational design and renovation without changing the precision of the 1250 highspeed slitting line make the height of burr less than 0.01 mm and the side camber lower than the standard of industry to enhance the commonality.Processing capacity and scope also increase accordingly.
